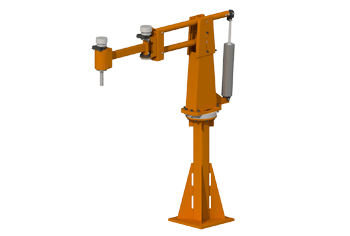

Pedestal Mounted Heavy Duty Articulating Arm
The AOA7000 Articulating Arm is used to lift, rotate, balance, and move product from conveyors, dunnage, assemmbly lines and more. AOA7000 Pedestal Mounted Heavy Duty Articulating Arm is ideal for applications that have limited overhead room. Knight offers fixed and 360 degree rotational AOA7000 Articulating Arms. AOA7000 Articulating Arm has a maximum reach (without Extension Boom) of 48 in. [1,219mm] and a maximum lifting/balance capacity of up to 470 lbs. [213kg] at 100 psi [6.8bar]. Capacities vary with reach; for more information contact a Knight representative.

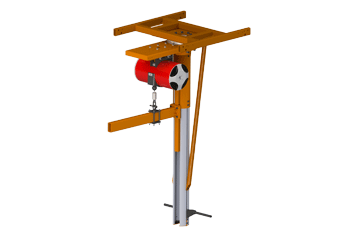

Vertical Mast Arm
Knight's ATA4000 can be used with any Knight Balancer or chain hoist. Knight's Vertical Mast Arm rotates 360 degrees or can be fixed mounted for the operator. Knight Global's ATA4000 has an available bearing clutch and friction (bumper) parking brake that attach to the Vertical Mast Arm. The ATA4000 Vertical Mast Arm has a maximum capacity of 500 lbs. [226kg] and a maximum torque of 853 ft/lbs. [1,156Nm]. Maximum Travel varies with each application; Contact a Knight representative for more information.

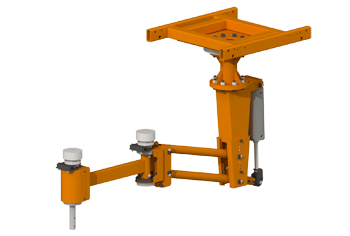

Overhead Mounted Heavy Duty Articulating Arm
Knight's AOA7000 Heavy Duty Arm reduces fatigue by absorbing torque reaction and lifting/manipulating product product effortlessly for the operator. The AOA7000 Articulating Arm is used to lift, rotate, balance, and move product from conveyors, dunnage, assemmbly lines and more. Knight's AOA7000 travels on the "X", "Y", and "Z" axis and features a variety of control configurations. Knight offers fixed and 360 degree rotational AOA7000 Articulating Arms. AOA7000 Articulating Arm has a maximum reach (without Extension Boom) of 48 in. [1,219mm] and a maximum lifting/balance capacity of up to 470 lbs. [213kg] at 100 psi [6.8bar]. Capacities vary with reach; for more information contact a Knight representative.

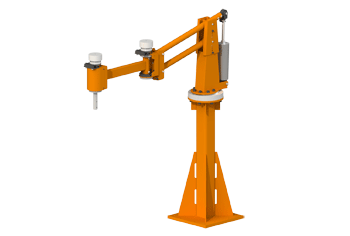

Pedestal Mounted Medium Duty Articulating Arm
The AAA6000 Articulating Arm is used to lift, rotate, balance, and move product from conveyors, dunnage, assembly lines and more. AAA6000 is ideal for limited overhead applications and features a variety of control configurations. Knight offers fixed and 360 degree rotational AAA6000 Articulating Arms. AAA6000 Articulating Arm has a maximum reach (without Extension Boom) of 48 in. [1,219mm] and a maximum lifting/balance capacity of up to 425 lbs. [193kg] at 100 psi [6.8bar]. Capacities vary with reach; for more information contact a Knight representative.

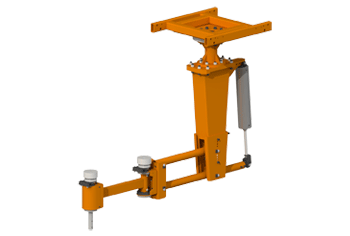

Low Profile Medium Duty Articulating Arm
AAA6000 Medium Duty Arm reduces fatigue by absorbing torque reaction and lifting/manipulating product effortlessly for the operator. The AAA6000 Articulating Arm is used to lift, rotate, balance, and move product from conveyors, dunnage, assembly lines and more. AAA6000 travels on the "X", "Y", and "Z" axis and features a variety of control configurations. Knight offers fixed and 360 degree rotational AAA6000 Articulating Arms. AAA6000 Articulating Arm has a maximum reach (without Extension Boom) of 48 in. [1,219mm] and a maximum lifting/balance capacity of up to 425 lbs. [193kg] at 100 psi [6.8bar]. Capacities vary with reach; for more information contact a Knight representative.

Pedestal Mounted Medium Duty Articulating Arm
The AOA5000 Articulating Arm is used to lift, rotate, balance, and move product from conveyors, dunnage, assemmbly lines and more. AOA5000 Pedestal Mounted Medium Duty Articulating Arm is ideal for applications that have limited overhead room. Knight offers fixed and 360 degree rotational AOA5000 Pedestal Mounted Articulating Arms. AOA5000 Articulating Arm has a maximum reach (without Extension Boom) of 48 in. [1,219mm] and a maximum lifting/balance capacity of up to 375 lbs. [170kg] at 100 psi [6.8bar]. Capacities vary with reach; for more information contact a Knight representative.

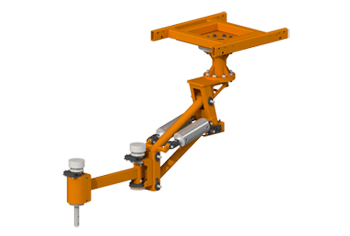

Overhead Mounted Medium Duty Articulating Arm
AOA5000 Medium Duty Arm reduces fatigue by absorbing torque reaction and lifting/manipulating product effortlessly for the operator. The AOA5000 Articulating Arm is used to lift, rotate, balance, and move product from conveyors, dunnage, assemmbly lines and more. AOA5000 travels on the "X", "Y", and "Z" axis and features a variety of control configurations. offers fixed and 360 degree rotational AOA5000 Articulating Arms. AOA5000 Articulating Arm has a maximum reach (without Extension Boom) of 48 in. [1,219mm] and a maximum balance capacity of up to 375 lbs. [170kg] at 100 psi [6.8bar]. Capacities vary with reach; for more information contact a Knight representative.

Linear Rail Mounted Light Duty Articulating Tool Arm
The AAA4000 Articulating Tool Arm is used to lift, rotate, balance, and move product from conveyors, dunnage, assembly lines and more. AAA4000 is ideal for limited overhead applications and features a variety of control configurations.

Pedestal Mounted Light Duty Articulating Tool Arm
The AAA4000 Articulating Tool Arm is used to lift, rotate, balance, and move product from conveyors, dunnage, assembly lines and more. AAA4000 is ideal for limited overhead applications and features a variety of control configurations.

Overhead Mounted Light Duty Articulating Tool Arm
AAA4000 Medium Duty Arm reduces fatigue by absorbing torque reaction and lifting/manipulating product effortlessly for the operator. The AAA4000 Articulating Arm is used to lift, rotate, balance, and move product from conveyors, dunnage, assembly lines and more. AAA4000 travels on the "X", "Y", and "Z" axis and features a variety of control configurations.
