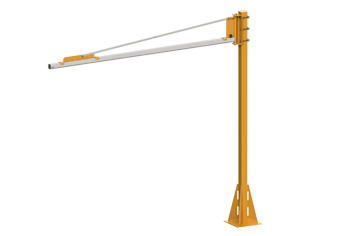

MJBA2200 Heavy Duty Turnbuckle Jib Crane
MJBA2200 Heavy Duty Turnbuckle Jib Crane are ergonomically designed to accommodate workstations where ceiling heights are inconvenient for an overhead crane system. The MJBA2200 Jib Crane offers a large tool coverage area with a single rotating RAD4110 Series Rail on a floor mounted pedestal. Knight Jib Cranes have Timken® Tapered Roller bearings that provide a smooth 360 degree rotation and have boom lengths available up to 20 ft. [6.1m]. The MJBA2200 Jib Crane has a level adjustment screw used to adjust the pitch of the rail and an adjustable hard stop.

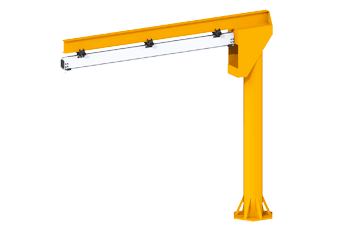

MJBA3000 Heavy Duty Low Profile Jib Crane
MJBA3000 Heavy Duty Low Profile Jib Crane is designed ergonomically to accommodate workstations where ceiling heights are inconvenient for an overhead crane system. The MJBA3000 Jib Crane offers a large tool coverage area with a single rotating rail on a floor mounted pedestal. Knight's MJBA3000 Jib Crane has an optional rail mounting kit for Knight's low friction RAD7510 Series Rail. Knight Jib Cranes have Timken® Taper Roller bearings that provide a smooth 360 degree rotation. Knight Global's MJBA3000 Heavy Duty Jib Crane has boom lengths available up to 20 ft. [6.1m]. Jib Crane booms can be extended by adding a Knight Telescoping Rail.

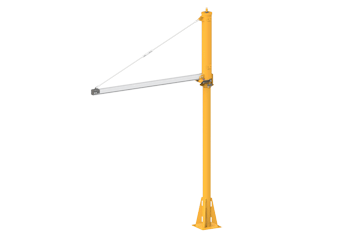

MJBA2100 Light Duty Turnbuckle Jib Crane
MJBA2100 Light Duty Turnbuckle Jib Crane are ergonomically designed to accommodate workstations where ceiling heights are inconvenient for an overhead crane system. The MJBA2100 Jib Crane offers a large tool coverage area with a single rotating TR2000 Series Rail on a floor mounted pedestal. Knight Jib Cranes have Timken® Tapered Roller bearings that provide a smooth 360 degree rotation and have boom lengths available up to 20 ft. [6.1m]. The MJBA2100 Jib Crane has a level adjustment screw used to adjust the pitch of the rail and an adjustable hard stop.

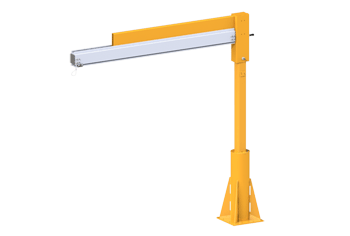

MJBA2600 Light Duty Low Profile Jib Crane
MJBA2600 Light Duty Low Profile Jib Crane is designed ergonomically to accommodate workstations where ceiling heights are inconvenient for an overhead crane system. The MJBA2600 Jib Crane offers a large tool coverage area with a single rotating rail on a floor mounted pedestal. Jib Cranes have Timken® Taper Roller bearings that provide a smooth 360 degree rotation. Light Duty Jib Crane has boom lengths available up to 15 ft. [4.5m]. The MJBA2600 Jib Crane has an adjustable hard stop and a level adjustment screw used to adjust the pitch of the rail. Jib crane booms can be extended by adding a Telescoping Rail.

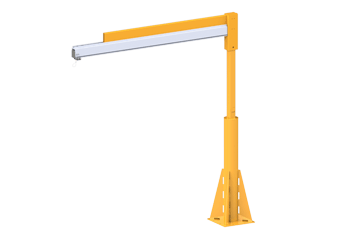

MJBA2300 Light Duty Low Profile Jib Crane
MJBA2300 Light Duty Low Profile Jib Crane is designed ergonomically to accommodate workstations where ceiling heights are inconvenient for an overhead crane system. The MJBA2300 Jib Crane offers a large tool coverage area with a single rotating rail on a floor mounted pedestal. The MJBA2300 Light Duty Low Profile Jib Crane allows for maximum hoist height on low head room applications. Knight Jib Cranes have Timken® Taper Roller bearings that provide a smooth 360 degree rotation. The MJBA2300 is capable of having boom lengths up to 15 ft. [4.5m]. The MJBA2300 Jib Crane has a level adjustment screw used to adjust the pitch of the rail and an adjustable hard stop. Jib Crane booms can be extended by adding a Knight Telescoping Rail.
MJBA2050 Light Tool Low Profile Jib Crane
MJBA2050 Light Tool Low Profile Jib Crane are ergonomically designed to accommodate workstations where ceiling heights are inconvenient for an overhead crane system. The MJBA2050 is typically used in applications that require tools that are suspended. Knight's MJBA2050 Jib Crane offers a large tool coverage area with a single rotating TR2000 Series Rail on a floor mounted pedestal. MJBA2050 has a Timken® thrust bearing that provides a smooth 210 degree rotation. The MJBA2050 has boom lengths available up to 10 ft. [3m] and under rail clearance heights of up to 12 ft. [3.7m]. The MJBA2050 horizontal boom can easily be leveled after it is secured to the floor by adjusting the end bracket fore/aft on the rail.

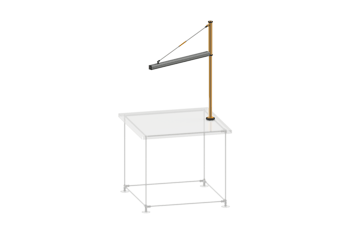

MJBA2000 Bench Mounted Jib Crane
MJBA2000 Bench Mounted Jib Crane are ergonomically designed to accommodate workstations where ceiling heights are inconvenient for an overhead crane system. The MJBA2000 Jib Crane offers a large tool coverage area with a single rotating TR2000 Series Rail on a bench mounted pedestal. MJBA2000 utilizes a roller bearing to provide a smooth 360 degree rotation. MJBA2000 has boom lengths available up to 5 ft. [1.52m] and under rail clearance heights of up to 6 ft. [1.8m].
