KNIGHT ERGONOMIC AND ASSEMBLY

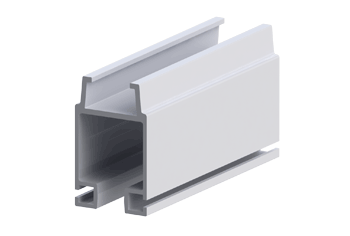

RAD7510 Series Aluminum Rail has an enclosed track design that is extruded from a lightweight high strength aluminum alloy. The lightweight aluminum rail eases installation and reduces overhead requirements. The RAD7510 Series Rail is the ideal solution, whether your load is located directly under the system or cantilevered off to the side. RAD7510 Series Rail combined with nylon trolley wheels, provides the lowest rolling resistance in the industry.

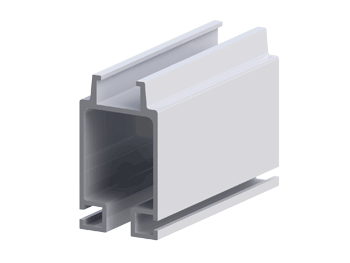

RAD6110 Series Aluminum Rail has an enclosed track design that is extruded from a lightweight high strength aluminum alloy. The lightweight aluminum rail eases installation and reduces overhead requirements. The RAD6110 Series Rail is the ideal solution, whether your load is located directly under the system or cantilevered off to the side. RAD6110 Series Rail combined with nylon trolley wheels, provides the lowest rolling resistance in the industry.

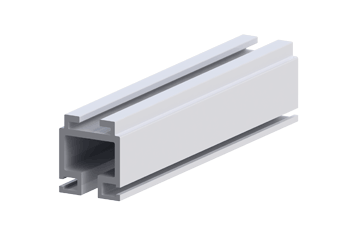

RAD4110 Series Aluminum Rail has an enclosed track design that is extruded from a lightweight high strength aluminum alloy. The lightweight aluminum rail eases installation and reduces overhead requirements. The RAD4110 Series Rail is the ideal solution, whether your load is located directly under the system or cantilevered off to the side. RAD4110 Series Rail combined with nylon trolley wheels, provides the lowest rolling resistance in the industry.

RAD4112 Curved Series Aluminum Rail has a curved radius enclosed track design that is extruded from a lightweight high strength aluminum alloy. Knight's RAD4112 Series Rail design allows loads to travel around corners and stationary objects. The RAD4112 Curved Series Rail is the ideal solution for direct loads on single curved sections. RAD4112 Curved Series Rail combined with nylon trolley wheels, provides the lowest rolling resistance in the industry.

RAD6112 Curved Series Aluminum Rail has a curved radius enclosed track design that is extruded from a lightweight high strength aluminum alloy. Knight's RAD6112 Series Rail design allows loads to travel around corners and stationary objects. The RAD6112 Curved Series Rail is the ideal solution for direct loads on single curved sections. RAD6112 Curved Series Rail combined with nylon trolley wheels, provides the lowest rolling resistance in the industry.

RAD7512 Curved Series Aluminum Rail has a curved radius enclosed track design that is extruded from a lightweight high strength aluminum alloy. Knight's RAD7512 Series Rail design allows loads to travel around corners and stationary objects. The RAD7512 Curved Series Rail is the ideal solution for direct loads on single curved sections. Knight's RAD7512 Curved Series Rail combined with nylon trolley wheels, provides the lowest rolling resistance in the industry.

LRD9500 Series Aluminum Linear Engineered Rail is for post mounted or floor mounted applications that require low friction horizontal movements. It is capable of handling direct and offset loads. Linear engineered rail is a lower maintenance alternative to hardened ground rail and bearings blocks. Linear rail is most often mounted in horizontal configurations. Contact Knight for all applicational uses and detailed specifications.

TR2000 Series Aluminum Rail is a streamlined design ideal for applications under 550 lbs/ft. [249.5 kg/m] capacity. The customer no longer needs to utilize oversize rail for lighter duty applications. This Innovative system allows for festooning trolleys and plant utilities to be attached to the main line rail system. This provides for more travel on your main line rail system. Application types can include: Light duty weld guns, work benches and stations, filter/regulator/lubrication (FRL), festooning, light fixtures, weld curtains, etc. The TR2000 Series can also be used for small bench type applications.

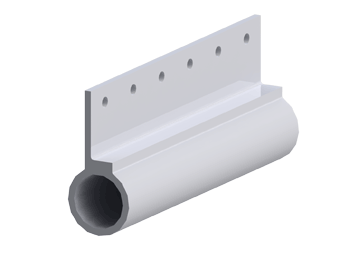

HAD3000 Series Aluminum Rail has a Chambered Rail design that is extruded from a lightweight high strength aluminum alloy. The lightweight aluminum rail eases installation and reduces overhead requirements. The HAD3000 Series Rail is the ideal solution for light duty applications, work benches and stations, festooning management and light fixtures. Knight's HAD3000 Series Chambered Rail can also be used as a fluid power distribution system for non-caustic fluids and can serve as a manifold which provides more CFM to pneumatic powered tools when compared to black pipe. HAD3000 Series Rail combined with nylon trolley wheels, provides the lowest friction in the industry.

HAD3500 Series Aluminum Rail is extruded from a lightweight high strength aluminum alloy. The lightweight aluminum rail eases installation and reduces overhead requirements. The HAD3500 Series Rail is the ideal solution for light duty applications, such as weld guns, work benches and stations, festooning management and light fixtures. HAD3500 Series Rail combined with nylon trolley wheels, provides the lowest friction in the industry.

MRAS4389 Floor Mounted Rail System Posts with Lindapters® are designed to provide a safe and efficient solution to your ergonomic challenges. A wide variety of options are available to meet all your specific engineering and application requirements. Each MRAS4389 Floor mounted Rail System is designed individually to your application and capacity requirements. The MRAS4389 Floor Mounted Rail System is available in RAD4110, RAD6110 and RAD7510 Aluminum Rail.

Aluminum Floor Mounted Post System is an easy to assemble lightweight alternative to the traditional steel four post system. The channels in the extruded aluminum posts can be used to mount torque monitors, tool holders, keyboards, television screens, tables and more. Each AFMRS1000 Floor mounted Rail System is designed individually to your application and capacity requirements. The Aluminum Floor Mounted Rail System suspends RAD4110, RAD6110 and RAD7510 bridges.

Cantilevered Rail Systems are designed to eliminate the need for a four post floor structure system. It provides an alternative to workstations with minimal floor space. A wide range of options are available with each system to meet all your specific engineering and application requirements. A Knight Representative will assist you in selecting and developing alternatives when designing your rail system.

MRAS4203 Offset Floor Mounted Rail System Posts provide a safe and stable platform to your floor mounted rail system. Each MRAS4203 Floor mounted Rail System Post is designed individually to your application and capacity requirements. The MRAS4203 Floor Mounted Rail System Posts are designed to suspend RAD4110, RAD6110 and RAD7510 Aluminum Rail Series.
